YOLOv8 (Object Detection)

This case study runs YOLOv8 through the RBLN Runtime API and analyzes how model operations map to NPU commands in an ATOM™ trace.

YOLOv8 is a prominent deep learning model in object detection and can be applied across a wide range of tasks. It shows excellent performance relative to its latency and the number of parameters. YOLOv8 utilizes C2f and Spatial Pyramid Pooling Fast (SPPF) blocks as its backbone to effectively perform various tasks. Detailed information about YOLOv8 can be found in the YOLOv8 official docs.

Preliminaries

Installation

1
2
3
$ cd rbln-model-zoo/ATOM/pytorch/vision/detection/yolov8
$ git submodule update --init --remote ./ultralytics
$ pip3 install -r requirements.txt

Compile Model and Activate RBLN Profiler

1
2
3
# sample image: people.jpg
$ python3 compile.py --model_name yolov8l
$ RBLN_PROFILER=1 python3 inference.py --model_name yolov8l

When using the RBLN Runtime API, set activate_profiler=True to enable the RBLN Profiler:

1
2
3
4
5
# Revise `inference.py` like below.
...
# Load compiled model to RBLN runtime module
module = rebel.Runtime(f"{model_name}.rbln", activate_profiler=True)
...

Extract Profiled Data with Inference

Run inference to obtain profiling data:

1
2
3
4
# `inference.py`
...
rebel_result = module.run(batch)
...

Alternatively, use scoped profiling methods as shown below:

1
2
3
4
5
6
7
# `inference.py`
...
from rebel.profiler import profile

with profile(output_dir="./profile_out"):
    rebel_result = module.run(batch)
...

Analysis of Profiled data from YOLOv8l with RBLN Profiler

Profiling Result

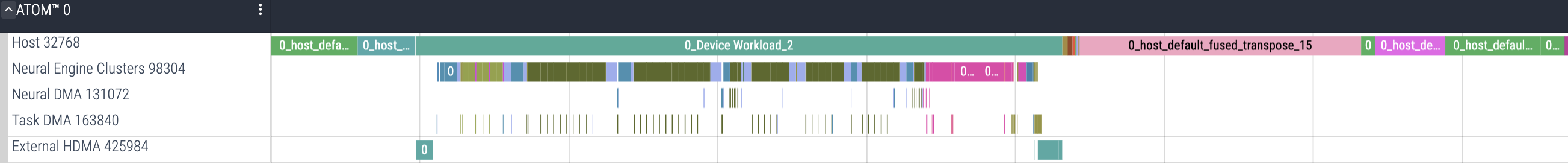

Perfetto timeline for one ATOM: a long host span over four tracks dense with short commands.

As seen in the above figure, YOLOv8l is well accelerated by ATOM™, and these operations are analyzed in detail below.

Host Command

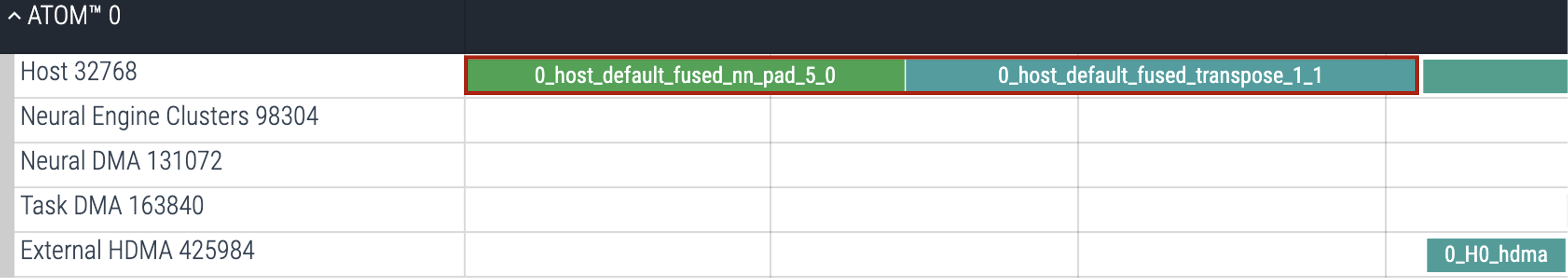

Two host commands outlined at the start of the timeline; the device tracks below are empty.

As shown in the figure above, the Host commands (0_host_default_fused_nn_pad_5_0 and 0_host_default_fused_transpose_1_1) transform input data into a format suitable for ATOM™ before the External HDMA command transfers it. Similarly, after inference, the results are sent back to the host CPU through External HDMA and are then converted into the desired output format using the corresponding Host commands. The names of Host commands are generated by internal logic and always include the host prefix.

Input Flow

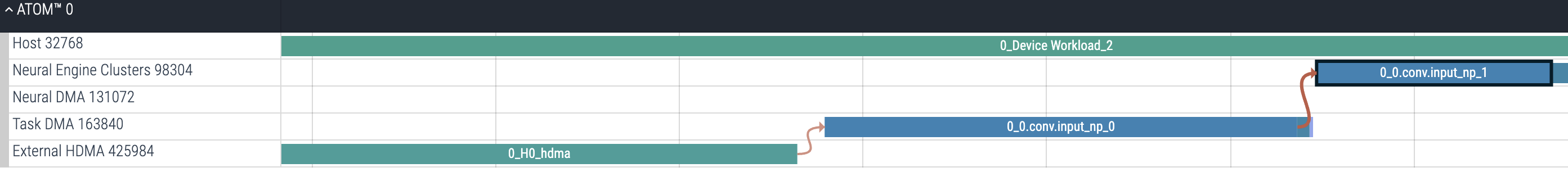

Arrows chain the first commands across the External HDMA, Task DMA and compute tracks.

As shown in the example above, the first Neural Engine Clusters command of YOLOv8l is 0_0.conv.input_np_1. This command’s flow indicates a dependency on the immediately preceding Task DMA command (0_0.conv.input_np_0). Additionally, this dependency can also be inferred from the fact that both commands (0_0.conv.input_np_0, 0_0.conv.input_np_1) have the same name except for the index suffix. The name of these commands is derived from a combination of conv, the name of the first operation in the model, and input_np, the name assigned to the input data during compilation.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
# rbln-model-zoo/ATOM/pytorch/vision/detection/yolov8/compile.py
input_info = [
    ("input_np", [1, 3, 640, 640], torch.float32),
]
compiled_model = rebel.compile_from_torch(model, input_info)

# >>> print(model)
"""
DetectionModel(
  (model): Sequential(
    (0): Conv(
      (conv): Conv2d(3, 32, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
      (bn): BatchNorm2d(32, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
      (act): SiLU(inplace=True)
    )
  )
)
"""
This input data is transferred from the host to the device memory inside ATOM™ via the External HDMA command (0_H0_hdma). Subsequently, the input data is transferred to the shared memory using the Task DMA command (0_0.conv.input_np_0) and is then used as an operand in the Neural Engine Clusters command (0_0.conv.input_np_1).

Similarly, the output data is transferred in the reverse order of the input data transmission. The Task DMA and External HDMA commands deliver the required output data from shared memory to DRAM and from DRAM to host memory, respectively.

Analysis of C2f block

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
# https://github.com/autogyro/yolo-V8/blob/cc3c774bde86ffce694d202b7383da6cc1721c1b/ultralytics/nn/modules.py#L179C1-L191C41
class C2f(nn.Module):
    # CSP Bottleneck with 2 convolutions
    def __init__(
        self, c1, c2, n=1, shortcut=False, g=1, e=0.5
    ):  # ch_in, ch_out, number, shortcut, groups, expansion
        super().__init__()
        self.c = int(c2 * e)  # hidden channels
        self.cv1 = Conv(c1, 2 * self.c, 1, 1)
        self.cv2 = Conv((2 + n) * self.c, c2, 1)  # optional act=FReLU(c2)
        self.m = nn.ModuleList(
            Bottleneck(self.c, self.c, shortcut, g, k=((3, 3), (3, 3)), e=1.0)
            for _ in range(n)
        )

    def forward(self, x):
        y = list(self.cv1(x).split((self.c, self.c), 1))
        y.extend(m(y[-1]) for m in self.m)
        return self.cv2(torch.cat(y, 1))


# >>> print(model)
"""
(2): C2f(
  (cv1): Conv(
    (conv): Conv2d(64, 64, kernel_size=(1, 1), stride=(1, 1),bias=False)
    (bn): BatchNorm2d(64, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
    (act): SiLU(inplace=True)
  )
  (cv2): Conv(
    (conv): Conv2d(96, 64, kernel_size=(1, 1), stride=(1, 1), bias=False)
    (bn): BatchNorm2d(64, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
    (act): SiLU(inplace=True)
  )
  (m): ModuleList(
    (0): Bottleneck(
      (cv1): Conv(
        (conv): Conv2d(32, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
        (bn): BatchNorm2d(32, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (cv2): Conv(
        (conv): Conv2d(32, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
        (bn): BatchNorm2d(32, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
    )
  )
)
"""

Ambiguous command name

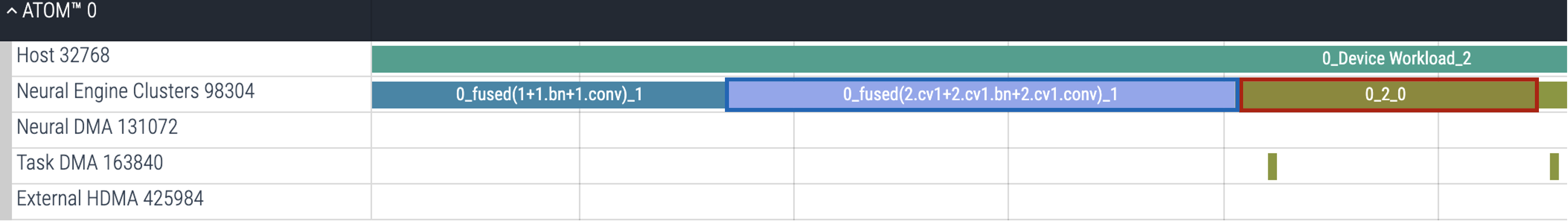

Perfetto timeline, Neural Engine Clusters track: 0_fused(2.cv1+2.cv1.bn+2.cv1.conv)_1 is the command outlined in blue, and 0_2_0 the one outlined in red.

The command 0_fused(2.cv1+2.cv1.bn+2.cv1.conv)_1 in the blue box corresponds to the fused self.cv1(x) block in the PyTorch code and the first (cv1) block in the result of print(model). From this, it follows that the subsequent 0_2_0 in the red box corresponds to the .split((self.c, self.c), 1) in the PyTorch code. For detailed information about how these names are assigned, refer to Naming Policy in Detail.

Connection flow

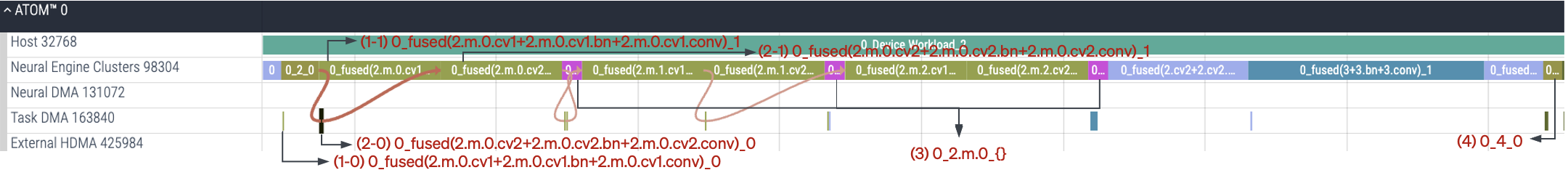

Numbered arrows link each Task DMA command to its counterpart on the compute track, then onward.

The Neural Engine Clusters commands such as (1-1) and (2-1), which come after the 0_2_0, correspond to the convolution blocks within the bottleneck operation defined by self.m in the PyTorch code. The flows between Task DMA commands (1-0, 2-0) and Neural Engine Clusters commands (1-1, 2-1) show that the Neural Engine Clusters commands need preloaded weights when they perform actual tensor operations. The command (3) corresponds to the add operation inside the bottleneck blocks, and the command (4) corresponds to the concatenation operation in the source code, self.cv2(torch.cat(y, 1)).

Device Workload

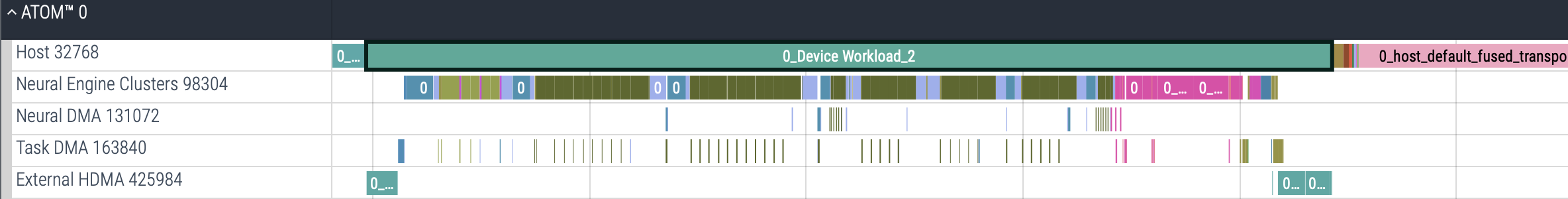

One host span outlined, covering the whole busy stretch of the device tracks beneath it.

As described above, a large number of commands are processed within the device. The Device Workload of the Host command shows when the device is occupied and in use. It clearly marks the start and end of tasks performed within the device.

Profiling Overhead

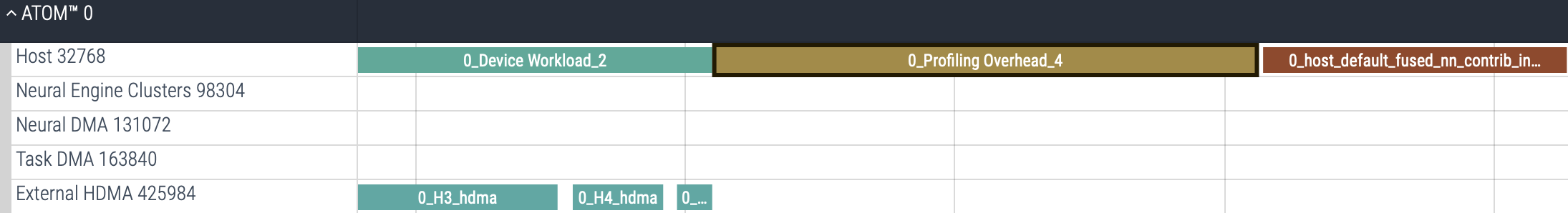

A host span outlined after the workload, with the device tracks idle beneath it.

The RBLN Profiler organizes the profiled data collected from ATOM™ after Device Workload has finished. This step incurs a certain delay, which is recorded as Profiling Overhead for the Host command. Once the profiled data has been organized, additional Host commands may be processed.
